Product Description

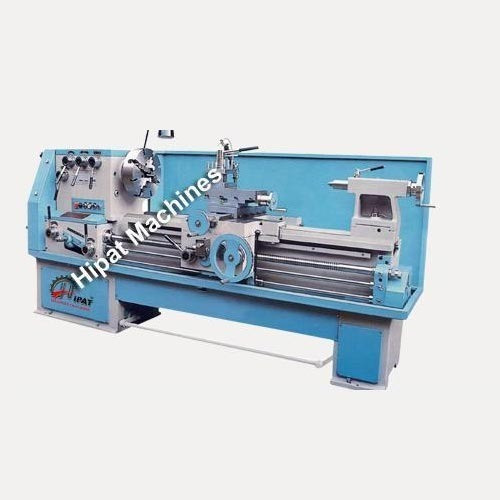

Given our vast industry experience, we are offering Heavy Duty Geared Lathe Machine to our clients. This consists of spindle which is driven by foot or by belt. It has power source as an integral part. This lathe machine has back gear and has manual shift auto transmission capacity. This lathe machine is delivered to our clients within stipulated time frame.
Features:
- Robust construction
- Optimum functionality
- High performance
Heavy Duty Lathe Machine Optional Accessories:
- Electric Motor & Starter
- Electric Coolant Pump
- 4 jaw independent chuck
- 3 jaw self centering chuck
- Gears to cut metric threads
- Taper turning attachment
- Tool post grinder
- Double Gap or Triple Gap etc.
- Digital Read Out (DRO)
- Revolving Center
- Norton Gear Box
Heavy Duty Lathe Machine Standard Accessories:
- Face Plate(One)
- Chuck Plate(one)
- Centers(Two center adapter(One)
- Stationery steady(One)
- Follow Rest Assembly(One)
- Set of 22 change
- Gears (One)
- Motor Plate (One)
- Tool Box
- Instruction manual
Heavy Duty Lathe Machine Applications:
- Tool rooms
- Steel & paper mills
- Power plants
- Ship building
- Mining and textile industries
- Educational institutes
- Repairing & maintenance
- Sugar mills
- “HIPAT” Center Lathes are well suited for all common turning surfacing and screw cutting operation with accuracy conforming to nearby grade –1 limits. These heavy duty lathe machines are specially designed for continuous light and heavy duty job and to give prolonged efficient life these lathes are worthy of a place in every machine shop where economy of operation, precision and reliability are primary considerations
- The Bed is made of close grained cast iron, having unusual strength and long wearing qualities it is machined and ground to finish and is wall bracket to withstand vibration free operation, under heavy cutting load the casting are fully seasoned and removal gap piece is fixed
- Head Stock:- The flat seat of headstock over the bed is perfectly matched by precision hand scrapping. Its spindle is made from high carbon steel which rotates on two cylindrical split type gun-metal bushes of grade 1 composition both at the front and at the back for smooth running and perfect balancing the machines are also made with headstocks fitted with tapper roller thrust bearings. During the operation of the machine eight different feed movements can be arranged by means of specially constructed four step cone extraction V-Belt gear mechanism. The headstock gears have Helical Hob-Cut Teeth
- The Apron is of double well design with independent drive motion for feeds and screw cutting simultaneous arrangement of feed and screw cutting is prevented by an interlock mechanism
- The Tail Stock is of special and sturdy design, it is guided inverted ‘V’ and flat way bed independent of the saddle guides and has on offsetting device for tapper turning
- The Saddle is of heave design for stable rigid longitudinal movement. A compound rest accurately graduated is mounted on the saddle for conical turning and can be swiveled on either side. A revolving four way steel tool post is provided. The rack is of steel with machine cut teeth
