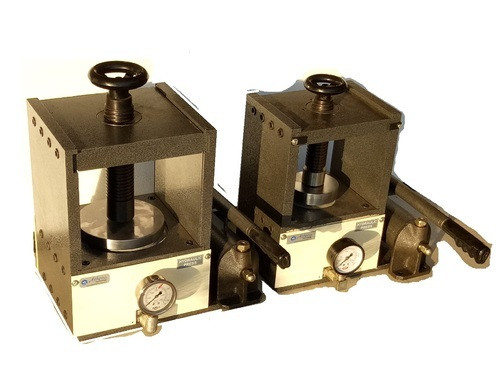

15 Ton Manual Hydraulic Laboratory Presses by Athena Technology

• Daylight : 90 mm
• Cylinder Type: Single acting, up stroking
• Pump Type: Hand operated

Technical Specifications:

• 15 Tons Manual Hydraulic Pellet Press (Table Top)
• Press Construction : Side Plate Construction
• Max. Capacity : 15 Tons (Tolerance +/- 1 Ton or 12-15 Kg/sq.cm.)
• Max. Ram Stroke : 15 mm
• Daylight : 90 mm
• Cylinder Type : Single acting, upstroking.
• Pump Type : Hand operated.
• Platen Size : 100 mm (Die will be placed on this platen).
• Overall Weight : 50 Kgs.
• Overall Dimensions : 300 (L) X 270 (D) X 425 (H) mm.
• Safety Feature : Pressure Relief Valve to safeguard against applying over-pressure.

A) Pellet Presses with Electrical Controls:

• 1. 15 Tons Semi-Automatic Press (Table Top) - Higher End Model
• 2. 15 Tons Semi-Automatic Press (Table Top) - Economy Model
• 3. 25 Tons Semi-Automatic Press (Table Top) - Higher End Model
• 4. 25 Tons Semi-Automatic Press (Table Top) - Economy Model
• 5. 30 Tons Semi-Automatic Press (Table Top) - Higher End Model
• 6. 30 Tons Semi-Automatic Press (Table Top) - Economy Model
• 7. 40 Tons Semi-Automatic Press (Table Top) - Higher End Model
• 8. 40 Tons Semi-Automatic Press (Table Top) - Economy Model
