Product Description

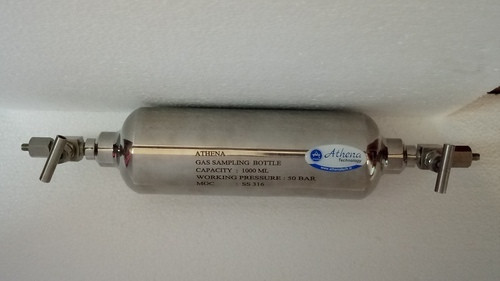

Gas Sampling Bottle:
Athena Industrial Gases manufacturers gas sampling bottle and are specially designed to collect and store high pressure gas samples from the field & transport the same to laboratories. Procured from well-established manufacturers, these are made to undergo rigorous quality control tests to ensure high performance.
Features:
- Used to store gas samples
- Ensure maximum integrity
- Effective corrosion resistance
- Available in different sizes and specifications
- Most competitive price
No | Containers | Make | Capacity | Filling Pressure |
1 | Disposable Gas Canister | Aluminum | 500ml | 20, 40 kgs / cm |
2 | Steel Sampling Bottles | S.S. 316 | 100ml, 250ml, 500ml | 120 kg / cm |
3 | Cylinders | Carbon Steel Aluminum | 3, 10, 47 ltrs. W/C 10 ltrs. W/C | 130 kg / cm |
4 | Glass Ampoules | Glass | 5 to 7 ml |
We manufacture quality gas sampling bottles. The product & the Quality has received acceptance from most of the leading industrial establishments, Top level Research Originations, Laboratories, Refineries, mines, chemical Industries, Fertilizer, pharmaceutical Enterprises.
- Athena Gas Sampling Bottles are manufactured in S.S. 316 construction.
- Each bottle is tested to hydraulic test pressure of 250 bar.
- Suitable for working pressure of 150 bar.
Technical Specifications:
Model | Volume ml | Wall Thickness | Length | Outside Dia | Weight Kg | Valve Details |
ATSB-25 | 250 | 5 | 250 | 48 | 2 | ¼” NPT |
ATSB-50 | 500 | 5 | 300 | 55 | 3.5 | ¼”NPT |
ATSB-100 | 1000 | 5 | 300 | 115 | 6 | ¼”NPT |
