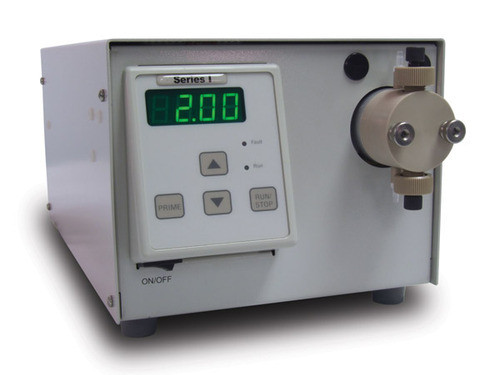

HPLC Column Washing Pumps by Athena Technology

• Can easily be modified for analytical and semi-preparative techniques.
• Incorporates a diaphragm-type pulse damper which reduces pulsation in the system by as much as 90% integrated prime/purge valve.
• Self-flushing pump head

• Can easily be modified for analytical and semi-preparative techniques.
• Incorporates a diaphragm-type pulse damper which reduces pulsation in the system by as much as 90% integrated prime/purge valve.
• Self-flushing pump head.
• Led readout on the front panel shows the flow rate.
• Tactile response, chemically resistant front panel keypad.
• Microprocessor advanced control.
• Digital stepper motor design prevents flow rate drift over time and temperature, which is a common problem found in analog design.
• Back panel Rs232 serial communications port for complete control And status monitoring.

Specification:

• Maximum Operating Pressure: 3500 Psig
• Flow Rate: 0.01 10 Ml/Min In 0.01 Steps
• Waisted Materials: Stainless Steel/Peek/ Ptfe
• Flow Accuracy: ±2% Of A Flow Rate Of 0.20 Ml/Min
• Flow Precision: 0.5% Rsd
• Control: By Keypad, Rs 232
• Remote Inputs: Rs-232
• Power Supply: 230 V ± 10%, 50 Hz
• Power Input: 35 Va

HPLC Column Washing Pumps LCP - 02 (Series II):

• The high performance liquid chromatography (HPLC) pump is designed to be a reliable component within a basic analytical or sophisticated research instruments. While ideal for HPLC applications the pump is also useful as a metering pump for general laboratory or industrial use.
• The flow rate of the pump fitted with a standard 10mL pump head can be set in 0.01 mL increments from 0.01 to 10.0 mL/min; size is available in type 316 stainless steel or biocompatible (metal-free) PEEK.
• The low pulsation flow produced by the reciprocating, single piston pump is achieved by using an advanced rapid-refil cam design, programmed stepper motor acceleration, and an internal pulse damper.

Pump Details:

• Can easily be modified for analytical and semi-preparative techniques.
• Incorporates a diaphragm-type pulse damper which reduces pulsation in the system by as much as 90%
• ntegrated prime/purge valve.
• Self-flushing pump head.
• LED readout on the front panel—shows the flow rate.
• Tactile response, chemically resistant front panel keypad.
• Microprocessor advanced control.
• Digital stepper motor design prevents flow rate drift over time and temperature, which is a common problem found in analog design.
• Back panel RS232 serial communications port for complete control and status monitoring.

Specification:

• Maximum operating pressure: 6000 psig
• Flow rate: 0.01 – 10 ml/min in 0.01 steps
• Wetted materials: Stainless steel, PEEK, PTFE
• Flow accuracy: ±2% of a flow rate of 0.20ml/min
• Flow precision: 0.5% RSD
• Control:By keypad, RS 232
