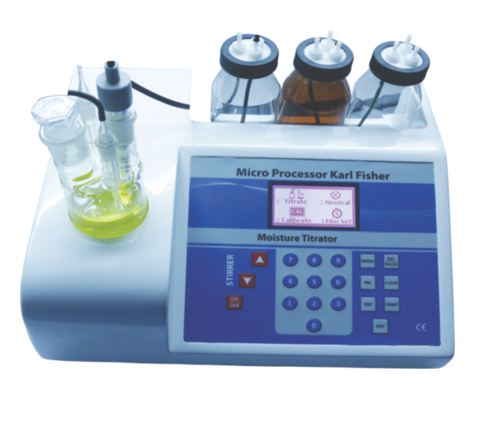

Microprocessor Karl Fischer Titrator by Athena Technology

Microprocessor KF Moisture Titrator, is the finest volumetric titrator available. It uses the latest microcontroller technology and advanced engineering techniques so as to give enhanced accuracy and ..

Categories: ,

Product Description

Microprocessor KF Moisture Titrator, is the finest volumetric titrator available. It uses the latest microcontroller technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts which guide you throughout the titration process. This titrator eliminates the use of conventional delicate and fragile glass burettes and plunger systems. It uses a highly sensitive motorized dispensing system for precise control of titrant volumes. This titrator analyses the moisture concentration of liquid samples, powder, fine particles and fiber samples that are soluble in alcohol or solvents. The moisture content is displayed in ppm, %age and mg H2O. The system has 24 soft touch membrane type keys for ease of operation. Complete numeric keypad is provided so as to feed the values of sample, density, titer factor, date, time etc. comfortable. The End Point indication is given by both visual LED and audible alarm. The titrator has the facility for automatically calculating the titer factor of the Karl Fischer reagent. It uses the repeated averaging method so as to give the most accurate titer value. It has the storage facility of date, time, batch no. and final results of 20 titrations using the FIFO method.


Features:

  • Auto Computation of Moisture in ppm, % mg H2O.
  • Storage of Date, Time, Batch No. and Final Results
  • 8-Digit Digital Display
  • Motorized Dispensing
  • External Printer Attachment Facility



Product Details:

Measuring Range

10 ppm to 100% of moisture

Measuring Method

Karl Fischer Volumetric Titration method.

K.F. Dispensing

Highly sensitive motorized dispensing system.

Resolution of Titrant Volume

0.01 ml

Indication of Titrant Volume

0.00 to 99.99 ml on display

Moisture content calculation (Automatic)

%age : (0.00 to 100%) ppm :: (10 to 9999999) mg H2O : (0.00 to 999.99)

KF Titer Factor

In-built Automatic KF Titer Factor calculation facility

End Point Alarm

Visual LED and Audible Alarm

Dispensing Pump Calibration

Available through Key board

Wait Time for End Point

Adjustable (1 to 59 seconds)

Key Board

24 keys soft touch membrane type

Sample storage

Upto 20 latest samples using FIFO memory

Display

8 digit bright red seven segment display.

Clock

In-built clock with date time display

Stirrer

In-built Magnetic stirrer with adjustable speed.

Reagent Bottle

3x250ml bottle for KF Reagent, methanol calcium chloride

Printer Interface

External Serial printer interface available.

Power Supply

230V A.C ± 10% 50 Hz.

Dimensions

360 x 295 x 175 mm

Accessories

Dual Platinum Electrode, Built-In Magnetic Stirrer, 250ml Bottle for Methanol, 10 Syringe, Adapter for KF Reservoir, Set of Dispenser Tubes, Bottle Container, Dust Cover, Titration Vessel with Teflon Cover, Teflon Coated Magnetic Stirring Capsule, 250 ml Reservoir Bottle for KF Solution, 250 ml bottle for Calcium Chloride, Adapter for Methanol Reservoir Bottle, Set of Connecting Tubes, Main Lead, Instruction Manual

Product Specification
