Moisture Meter by J. S. Enterprises

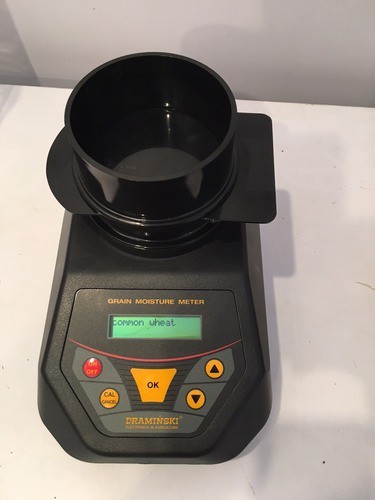

Draminski Grain Moisture Meter made in Poland Measurement of the whole grains is performed using capacitive method. It is easy to fill the sample with the help of a dispenser. Large, legible graphic LED backlit screen shows full name of the species, moisture in %, average measurement and temperature of the grain. There is a digital temperature sensor in the chamber which guarantees accurate measurements.

The meter is calibrated for 30 species of cereal, oilseed, legume and grass seeds with the following measurement ranges:

Rye 7.6% – 35.0%
Wheat 7.2% – 35.0%
Quality wheat 7.3% – 35.0%
Triticale 7.4% – 35.0%
Spring barley 8.0% – 35.0%
Oat 8.0% – 35.0%
Buckwheat 6.5% – 35.0%
Horse bean 7.9% – 35.0%
Yellow lupine 6.6% – 35.0%
Narrow-leafed lupin 7.5% – 35.0%
Pea 8.0% – 33.0%
Field peas7.8% – 35.0%
Canola 4.0% – 30.0%
Bean 7.7% – 30.0%
Corn 8.0% – 43.0%
Shelled sunflower seeds 6.0% – 14.9%
Husk sunflower seeds 5.5% – 15.6%
Perennial ryegrass 6.4% – 22.0%
Red clover 5.7% – 26.3%
White clover 4.8%-25.0%
Small kidney beans 8.9% – 30.4%
Jack bean 8.9% – 30.0%
Mustard 7.3% – 21.6%
Panicum 4.0% – 18.6%
Soya beans 7.5% – 28.8%
Sorghum 9.8% – 28.3%
Linseed 5.4% – 20.5%
White rice 7.4%-18.2%
Wild rice 9.1%-21.4%
Coffee beans 7.7%-30.0%

Technical data
Dimensions		25.0 x 16.0 x 11.5 cm
Unit weight		940 g (with battery)
Sample loading		manual, using dosage tube with slider
Sample volume		270 ml
Moisture measurement method		capacitive
Power supply		1 x 9 V battery, type 6LF-22
Power input		about 12 mA
Estimated working time on one battery pack		about 45 h
Battery low indication		Automatic
Display		LCD, alphanumeric 2 x 16 digits
Keyboard		membrane
Measurement resolution		temperature – 1°C, moisture – 0,1%
Data modification		using keyboard – Data modification option
Range of temperature measurement		from 0 °C to about 70 °C
Temperature compensation		Automatic
Accuracy of temperature measurement		±1 °C
Accuracy of moisture content measurement		± 1 % in the range up to 10 % of moisture ± 1,5 % in the range above 10 % of moisture and can increase with moisture level
Recommended working temperature		from 10°C to 35°C
Recommended storage temperature		from 5°C to 45°C
