Product Description

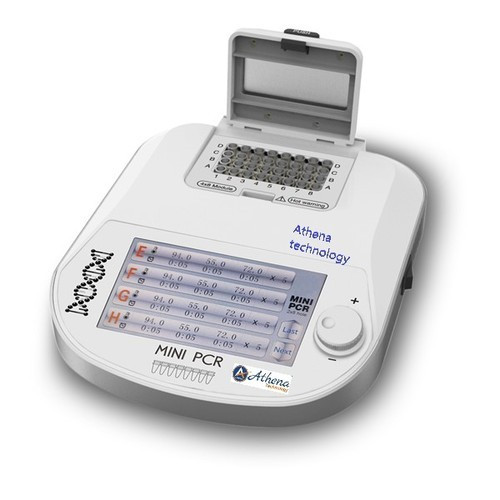

Mini PCR Thermal Cycler Instrument
Product description: ATC-16/ ATC--32 series Mini PCR instruments is an ultra-light ultra-thin thermal cycle gene amplification instrument. Using 5-inch TFT high-definition true color full touch LCD screen, the whole program displays in real time with curve graph, parameter modification intuitive and convenient. Using the latest generation of semiconductor heat pump technology, excellent temperature accuracy and uniformity and have extremely high temperature change speed, to ensure high-quality experimental results. Mini portable can be used on-board.
1、New and unique appearance, the interface operation is simple and convenient, ultra-light ultra-thin, mini portable can be used on-board.
2、The latest generation of semiconductor technology, excellent augmentation performance, effectively eliminate the edge effect of module heat conduction, the module temperature uniformity excellent.
3、Fast heating/cooling rate, maximum can attain 5℃/S.
4、The bottom shell with one aluminum carved processing, not only quasit and solid, but also greatly enhance the heat dissipation performance.
5、5-inch TFT full HD touch screen, real-time accurate display temperature curve and the instrument running process status.
6、Friendly & intuitive interface, a shorter time to complete the PCR program parameter setting, convenient & fast.
7、Hot cover can be opened and closed at any time, higher compatible controllability.
8、Program built-in 16 groups commonly used parameter settings, the list flip page preview invoke, convenient and fast.
9、There are 4x8 type modules (unique 8 PCR tube strips compatible modules) combination model optional, to meet more experimental needs.
Model | ATC-32 |
Sample capacity | 32 hole x 0.2ml |
Temp. control range | 8 ~ 99.9℃ |
Time adjustment range | 1s ~ 60min |
Temp. display resolution | 0.1℃ |
Temp. control accuracy | ±0.2℃ |
Temp. uniformity | ±0.2℃ |
Max. Heating speed | 5℃/s |
Max. cooling speed | 4℃/s |
Stored program number | 16 |
Cycle number range | 1 ~ 99 |
Hot cover temperature | 105℃ |
Ambient temperature | 8 ~ 30℃ |
Control interface | Touch screen / knob adjustment |
Power supply | DC24V,6A |
Dimensions ( Wx D x H ) | 200 x 230 x 85 mm |
Net weight | 3.2kgs |
Product Specification
