Product Description

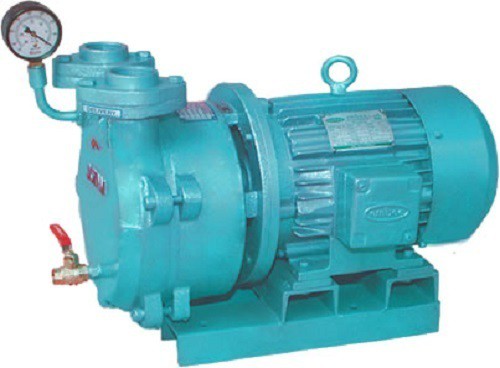

Mono-Block Modern Design Water-ring Vacuum Pumps are very compact, easy to install, easy to assemble, mobile and simple design with smooth operation. These pumps are connected to the motor shaft. These Pumps develop maximum vacuum of 680 to 720 mm of Hg, when the sealing water temperature is around 30ºC (755mm of Hg Barometric Pressure Suction Temperature 30ºC). They operate at low water consumption and low pressure i.e. 0.3 to 0.5 Kg/cm2. As they are compact, they can be easily taken from one place to another.
Salient Features
Simple Construction
Trouble free operation
Compact and Mobile
14 cu. m/hr. to 330 cu. m/hr
Applications
Laboratory Usage
Priming Purposes
Pilot Plants
Product Specification
