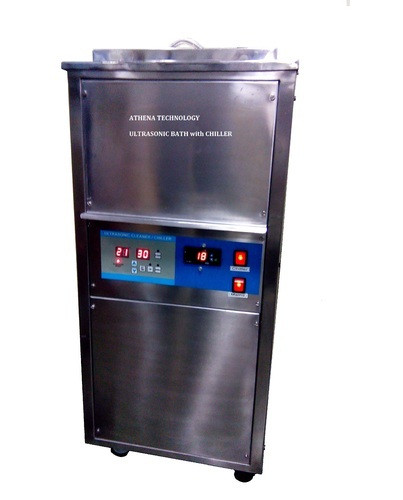

Ultrasonic Bath With Chiller by Athena Technology

With an objective to fulfill the demands of our clients, we are engaged in offering a wide range of Ultrasonic Bath With Chiller. The system is provided in the Ultrasonic Cleaner and regulates the tem..

Categories: ,

Product Description

With an objective to fulfill the demands of our clients, we are engaged in offering a wide range of Ultrasonic Bath With Chiller. The system is provided in the Ultrasonic Cleaner and regulates the temperature and keeps the machine in good condition for a long functional life. Keeping in mind the latest market development, the provided system is manufactured by our deft engineers employing supreme class components with the assistance of sophisticated technology in adherence to defined industry standards.


The machine consists of the following:

  • Voltage: 220V/50Hz
  • Ultrasonic Power: 240 - 360 W or higher
  • Tank Size: 10, 20, 25, 30, 40, 50 liters
  • Chiller Temp: 5 – 25 deg.cent.
  • Temp. Controller with Indicator
  • Digital Timer: 0-30 minutes digital timer for Ultrasonic ON / OFF
  • SS Lid and wire mesh Basket ( various level adjustable )
  • Fast Clean Ultrasonic Cleaners With Cooling Facility (Single Stage)


Objective:

  • To maintain the bath temperature below the room temperature upto 12°C to avoid adding of
  • "IceFlakes" with inbuilt cooling facility. It helps to control the bath temperature without personalized
  • attention & reduces the chance of damage to process liquid in a professional way.
  • This system consists of 2 parts viz.:
  • A) Ultrasonic Chamber B) Cooling Components like coils, condenser & compressor of suitable capacity. It has a control panel to control various features of ultrasonic as well as the cooling system.
  • A specially designed & developed ultrasonic system to generate efficient ultrasonic energy compatible to low bath temperature & it greatly enhances the work efficiency



Cooling Facility:

  • Temperature range 12°C to Room Temp. Max.30°C.
  • Temperature stability: a 2°C
  • Display: Dual 7 segment LED
  • Display resolution: 1°C
  • Refrigerant: CFC free
  • We will provide copper cooling coils around outer surface of the tank. This will be connected to a condenser & compressor built-in in the machine (Chilling Unit) this will control bath temperature as per your requirement.


Applications:

  • Laboratory : For Glassware, Filters Cleaning & HPLC Mobile Phase, Degassing
  • To prevent solvent which gets evaporated above ambient temperature while sonicator during mobile phase.
  • Industrial : Semi-conductors, Electronic, Components, Precious parts & Mechanisms
  • Medical : Dental & Surgical Instruments
  • Opticals : Spectacles, Spectacle Frames, Lenses
  • Jewellery : For all kinds of Jewellery, Precious Stones etc.
  • To remove : Dust, Oils, Greases, Compounds, Waxes, Swarf, Stains, Soils and any other contaminant

Product Specification
