Vacuum Dewatering System by Akshat Enterprise

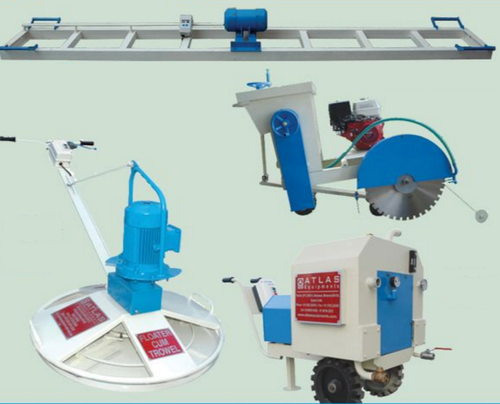

We make Vacuum Dewatering System consists of a Double Beam Screed Vibrator, a Floater cum Trowel, Vacuum Pump and Groove Cutting Machine There are certain advantages of using de watering systems over normal concrete slabs:
It reduces the water cement ratio compared to the normal concrete slabs.It increases the tensile strength of the floor.There is also a rise in abrasion resistance when vacuum de watering systems are used Faster initial strength gain in case where de watering systems are used

Double Beam Screed Vibrator

Double Beam Screed Vibrators are used to give a uniform flooring to the RCC flooring. The heavy weight removes any external air bubbles of the RCC flooring. The difference in superior compaction is seen by the heavy weight it eludes. It is driven by a 1 HP motor. For the safety of motor, an electric starter is provided.

Vacuum pump : 7.5HP AND 5 HP

Vacuum Pump is used to suck all the air bubbles that may have trapped during the laying of the concrete. It allows the cement to come up to upper layers and hence gives a superior strength to the floor. The three mats: filter mat, suction mat and top mat, these mates do not allow cement to come up but only sucks the extra water. Top mat size is 4.5 m x 5.5 m During working, it eludes a vacuum pressure of 450-500 mm/Hg . Maximum pump pressure which can be developed is 650 mm/Hg. It is powered by 7.5 HP motor.

Trowel Cum Floater

Ower Floater cum trowel is powered by 3 HP geared motor and is used to give a superior finishing to the RCC flooring. The gear box is heavy duty and sturdy designed for rough Indian conditions. The dish used for finishing is 4mm thick and is very important to maintain a long life. This machine also works as a trowel for best finished floor. Conversation from floater to trowel is very easy.
