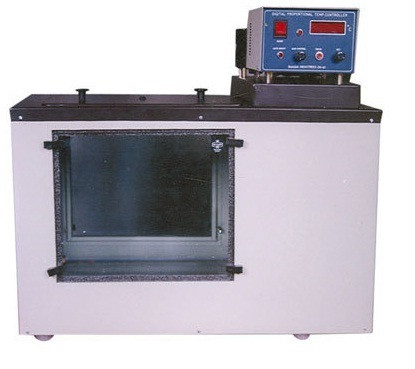

Viscosity Bath by Athena Technology

Application:

• Equipment specially designed for tests in the field of medical, agricultural, bio-chemical, R & D & Q. C. Laboratories

Construction:

• Double walled, exterior of CRCA /GI, non-contaminant epoxy powder coated & inner chamber of AISI S.S. 304, with PUF insulation, S.S. Lid on top with provision fro Holding viscometer holders

Circulations:

• Efficient motor of 1440 RPM Top mounted is installed for stirring to get temp uniformity

Heaters:

• S. S. Tubular Heaters for maintaining of temp.

Refrigeration Systems:

• Hermetically sealed compressor provides temp. for below ambient conditions, Refrigerant CFC free

Temp. Control:

• Solid State Electronic Digital Temp. Control Panel housing all the control switches with PT – 100 sensor.

Optional:

• Models available as per GMP, Complete S.S unit, Strip Chart Recorder. Microprocessor based PID temp. Control with printer interface, RS 232 CPC, RS-485 interface for multiple networking of controller.

Validation Protocols:

• Validation Protocols for IQ OQ PQ & DQ complete documentation with reports, Calibration & Test Certificate traceable to National & International Standards.

Safety Features:

• Safety thermostats for over shooting of temp. safety circuit to cut off the whole system in case of malfunction ( Applicable to microprocessor based models only) HRC fuses for compressor heaters & mains, time delay circuit for safety of compressor

Special care:

• A suitable K.V.A. servo controlled voltage stabilizer is recommended.
