Product Description
Description:

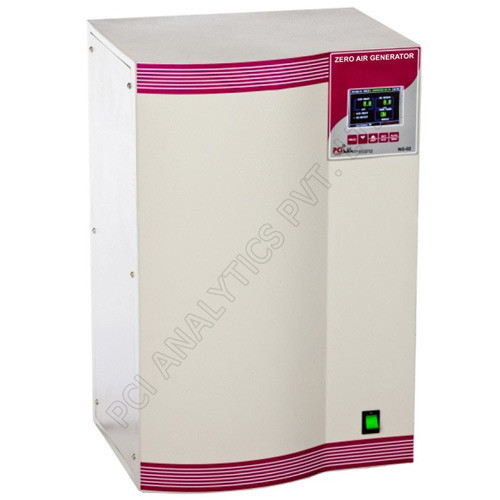

- Zero Air Generator produces a continuous flow of high purity Zero Air at selected pressure.
- The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease.
- Untreated air flows under pressure through the reaction towers containing molecular sieve adsorber.
- Moisture, CO, CO2, THC and other unwanted components in the air are adsorbed, leaving Zero Air Gas of required purity.
- The Zero Air Generators are suitable for use in laboratories and industrial environments.
- Microcontroller digital display
Salient Features:
- Deliver constant pressure & flow
- Fully Automatic Programmable System
- Easy Maintenance and space saving
- Effortless and easy operation
- Improves instrument performance
- Fully regenerative, durability with PSA technology Applications:
- GC-FID, FPD, NPD, TCD, AED
- GC-MS, LC-MS-MS, ICP / NMR
- FTIR / IR, ELSD detector
- Purging, Ampule Filling
- Thermal instruments, Turbo Evaporator (N2 Concentrator)
- All Analytical Instruments
Note:
- Zero Air Generator (Model ZAG-02) requires oil free compressed air line of 60 LPM at 6 kg/cm²
- Oil free compressor can be provided by PCI.
- For model ZAG-03, PCI oil free compressor is recommended
Principle Specifications | ZAG-02 (for 2-5 GC's) (for Imported GC) |
Moisture | < 2 ppm |
Total Hydro Carbon | < 0.5 ppm |
CO & CO2 | < 2 ppm |
Purity | GC/UHP grade |
Micro Particulates | < 0.01µ |
Capacity of ZAG | 4 LPM at 5kg/cm² |
Method of purification | Pressure Swing Adsorption (PSA) |
Room temperature | 5 °C - 25 °C |
Start up time | 5 minutes |
Electrical requirements for ZAGa | 230 VAC, 50 Hz, 1 ph, 4 Amp |
