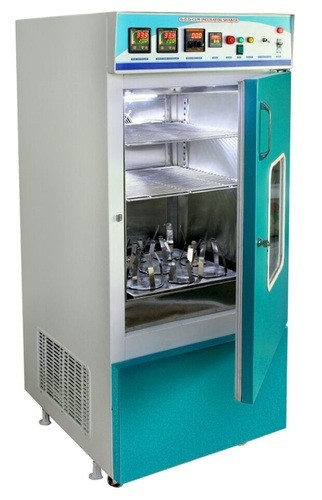

B.O.D. Incubator (Biological Oxygen Demand) by Athena Technology

B.O.D. Incubator (Biological Oxygen Demand):

• Athena Castor wheel mounted cabinet is double walled with inner chamber of stainless steel & outer wall of M.S. Sheet duly powder coated. Double walled back of the unit is fitted with air circulation fan for maintaining temperature uniformity throughout the chamber. Full view inner glass door permits inspection of specimens without disturbing the same. Lock & Key arrangement is provided in the double walled outer door. Unit is fitted with door operated illumination lamp inside the chamber. The front panel is provided with separate indicator lamps for main, heating & incoming voltage. Supplied complete with adjustable shelves, cord & plug to work on 220/230 volts A.C. supply. The temperature range is from 5°C to 60°C accuracy ±0.5°C is controlled by Digital Temp indicator – cum – controller.

Specifications:

Note: For BOD Incubator Stabilizer is necessary

Designed Specially biological Oxygen demand determination and other applications like general incubation, serum studies and enzyme assays tests:

• Castor wheel mounted cabinet is double walled.
• Inner chamber made of Aluminium / S.S. Outer chamber made of M.S. with powder coating.
• Full length inner glass / acrylic door permits inspection of specimens with out disturbing the temperature.
• Temperature Controlled by Digital Temperature Controller cum indicator. Temperature range 5° to 50°C with an accuracy of 0.5°C.
• This unit is fitted with door operated illumination lamp inside the chamber.
• Equipped with vermitically sealed compressor.
• Air Circulation Fan for maintaining temp. Uniformity through out the chamber.
• Flush fitting insulated double walled door has magnetic gasket.
• The chamber is provided with modular removable shelves made of S.S. for complete flexibility is use.
• Inner chamber is fitted with refrigeration evaporator, heater and Air Circulator for creating positive
• Air flow through out the inner chamber for temperature uniformity.
• To work at 230V A.C. only.
