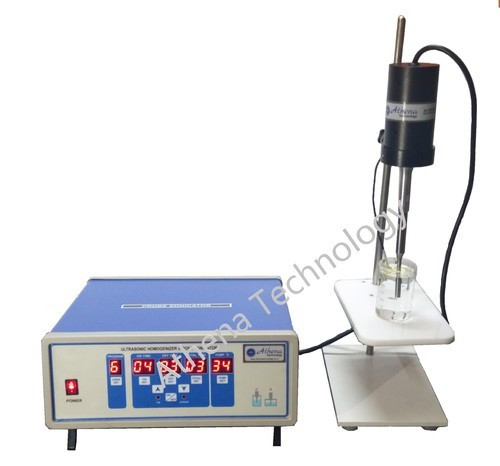

Ultrasonic Probe Sonicator by Athena Technology

Ultrasonic Sonicator (Indigenous):

Ultrasonic Homogenizers are recommended for homogenization and Analysis of laboratory samples that do not require traditional grinding or rotor-stator cutting techniques for processing. The ATHENA Ultrasonic Homogenizers offer precision engineering with all the necessary features to create a total system for ultrasonic disruption. In biological applications, Probe Sonicator is often used to disrupt cell membranes and release cellular contents. Probe Sonicator is also used to fragment molecules of DNA. Probe Sonicator is commonly used in nanotechnology for evenly dispersing nanoparticles in liquids and for breaking down particles to nano size.

Other Details:

• Timer: digital 1 min –99 min adjustable Impulse: digital closed loop, open loop: 1s , 4s , 8s
• Programmable : 10 program set
• Temp Range : 10-99°C (Temp settable)
• Piezoelectric frequency energy converter : Lead zirconate TITANIUM
• (PZT) pyro electric ceramics .
• Standard probe: Titanium Alloy material Diameter (probe):
• 3mm/6mm/ 10mm / 12mm.
• Power Supply: AC 230, 50 Hz/60 Hz
• CE & ISO 9001: 2008 Certified
• Variable Amplitude Control
• Micro Based, processer, Digital Display with user prompts
• Full Function pulsar ON & OFF
• Laboratory Jack
• Ultrasonic Power : 150 -750W ( Average )
• Ultrasonic Frequency : 20+2 Hz
• Processor Controller with time Operation in : Micro Processor based Programmable Timer Two digit display is provided for selecting On Off Time and Total time of Processing Cyclic Mode
• Probe Tips : Detachable type made of TITANIUM
• 3 mm Dia and 20 mm Dia
• Cyclic Mode on : Maximum on time 15 Seconds no
• clamping off time
• Ultrasonic Horn: Is made of TITANIUM
• Ultrasonic Generator Tuning : Is Housed in a separate
• box. It has auto facility & the required control Unit
• Standard Accessories : Stand for Ultrasonic Probe
• Sonicator & Jack type for sample Placement.
• Probe Sonicator (Advanced)

Main Features:

• Auto frequency chasing, avoiding adjustment
  liquid crystal display at peak value.
• Main Instruction, Convenient operation
• Display Temperature Control Checking and set
  over - hot protection on the samples
• Output Amplitude 0-100% adjustment
• Overload Protection, so that equipment can
  not be damaged
• 10 Operating Programs for application or
  reserve after refreshing.
